推进5G+工业互联网应用：华北工控BIS－6390ARA－C50满足高性能计算和丰富扩展要求
2025-12-02

North China Industrial Control, as a provider of industry specific industrial personal computer products, keeps pace with the development trend and constantly speeds up the upgrading and iteration of products. Based on Rockchip's flagship AIoT chip RK3588, it launched the BIS-6390ARA-C50 embedded quasi system, which meets the requirements of high-performance computing, large memory, multi-mode high-speed network communication, rich expansion and flexible deployment, and can be highly integrated into 5G+industrial Internet application scenarios.

Scenario-based Application

Machine vision quality inspection

Deploy industrial computers on the edge side to run AI vision algorithms for real-time defect detection, utilizing their large memory, multiple network ports, or multiple I/O interfaces to access multiple video streams and complex functional modules, achieving comprehensive real-time detection.

Robot collaborative work

As the "brain" of robots, industrial computers receive program instructions through multimodal network communication and AI computing capabilities, while localizing sensor data to achieve robot cluster collaboration, autonomous navigation, and intelligent decision-making.

Remote management and predictive maintenance of equipment

Deploy industrial control computers on 5G IoT gateways or edge nodes, utilizing their rich interface configurations to achieve multi device interconnection and real-time data collection, transmission, and processing, remote control of device operations, real-time detection of device operating status, and immediate alerting in case of anomalies.

Product Details

North China Industrial Control BIS-6390ARA-C50 is equipped with RK3588 chip to achieve high-performance and self controllable design. It has rich interfaces and industrial grade durable features, fully meeting the scenario landing requirements of 5G+industrial Internet applications.

Enhanced processing capability

BIS-6390ARA-C50 is equipped with RK3588 (4-core Cortex-A76+4-core Cortex-A55 architecture) processor, integrated with 6T computing power NPU, supports INT4/INT8/INT16/FP16 hybrid computing, and can handle multitasking parallel processing loads;

Onboard 4/8GB LPDDR4X memory, with a maximum capacity of 16GB, and supports 1 * SATA/mSATA, 1 * eMMC (up to 128GB), 1 * TF, and 1 * Mini PCIe (supporting SSD modules) for high-speed caching;

Integrated ARM Mali-G610 GPU, supports 8K 60 frame decoding and 8K 30 frame encoding, supports 2 * HDMI OUT and 1 * HDMI IN interfaces, and can achieve real-time splicing of multiple ultra high definition videos and multi screen display.

Rich interface configuration

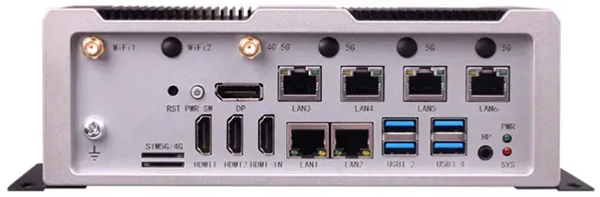

BIS-6390ARA-C50 supports 6 * Gigabit RJ45 Ethernet ports and 4 * USB 3.0 for extensive interconnection of multiple intelligent devices, and supports 4 * RS-232/485 serial ports for higher speed data transmission and processing;

Supports 1 * Mini PCIe extension of 4G/5G network modules, and 1 * Mini PCIe extension of 4G/WIFI modules to meet product requirements for wireless network communication and remote management;

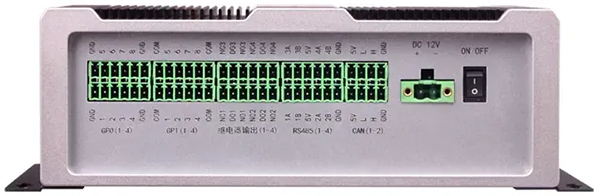

Supports 1 * CAN, 2 * LED, 8 * GPI/8 * GPO interfaces, making it convenient for users to access more peripherals.

High security and reliability

BIS-6390ARA-C50 has achieved domestic independent controllable design, compatible with Android and Linux operating systems, supports technologies such as watchdog and hardware redundancy, and can provide a safer and more open source system operating environment;

Meet the requirements of wide temperature operation from -20 ℃ to 70 ℃, and have strong and durable characteristics such as electromagnetic interference resistance, earthquake resistance, and dust prevention.

The size is 199x131x68mm, supporting DC 12-36V (optional) wide voltage power supply, can be installed on desktop/wall, and is easy to deploy.
