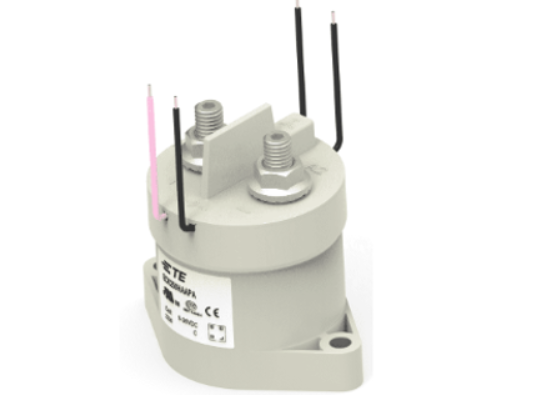

This new contactor has found a balance in the middle of the current "high is not good, low is not good". It can not only achieve 1000VDC high-voltage switching capability, but also meet the customer's requirements for updating the system voltage. At the same time, the product's "shape" remains unchanged, which will not cause additional space pressure to the customer's application, so that customers can easily and flexibly put it into use as an upgrade scheme without changing their feet.

Local production, stable delivery date

More importantly, this product is made locally and has complete certification. The delivery time for customers in the Asia Pacific region is about 1.5 months, which can speed up the pace of customer development and production and help the product to be launched as soon as possible.

Product specifications

● Maximum long-term carrying current: 500A

● Rated on load switching current: 150A, 200A, 250A

● Maximum on load switching voltage: 1000VDC

Complete ceramic sealing

● Built in PWM economizer, power consumption 1.7W

● Optional auxiliary contact

● Applicable ambient temperature: - 40 ℃~85 ℃

● Conform to DC-1 use category (EN/IEC60947-4-1)

Product advantages

Complete sealing is more reliable

● High switch of hydrogen arc extinguishing

● Energy saving design and low power consumption

● Auxiliary contact can be monitored

● Small size and space saving

● Complete and universal certification (CCC, UL, CE, TUV certification)
