96MHz main frequency M0+core low-power microcontroller CW32L011 product introduction
2025-09-08
CW32L011 is a single-chip low-power microcontroller based on EFL, integrating ARM with a clock frequency of up to 96MHz ® Cortex-M0+core, high-speed embedded memory (up to 64K bytes FLASH and up to 6K bytes SRAM), and a comprehensive range of enhanced peripherals and I/O ports.
All models come with a complete set of communication interfaces (3 UART, 1 SPI, and 1 12C), 12 bit high-speed ADC, 5 sets of general and basic timers, 1 set of low-power timer, and 1 set of advanced control PWM timer.

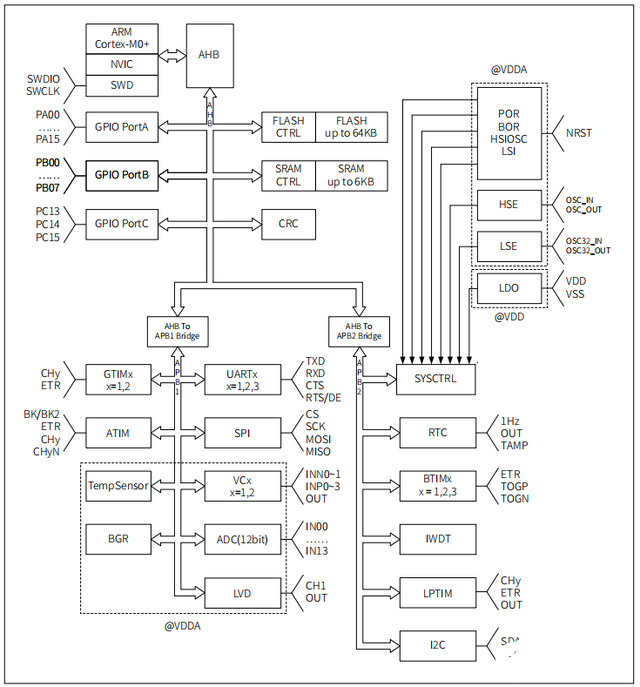

CW32L011 can operate within a temperature range of -40 ° C to+85 ° C, with a power supply voltage width of 1.7V to 5.5V. Supports two low-power operating modes, Sleep and DeepSleep. The internal block diagram is shown in the following figure:

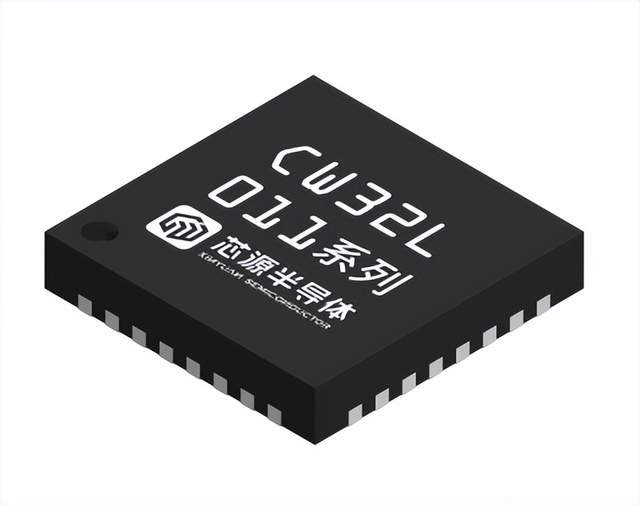

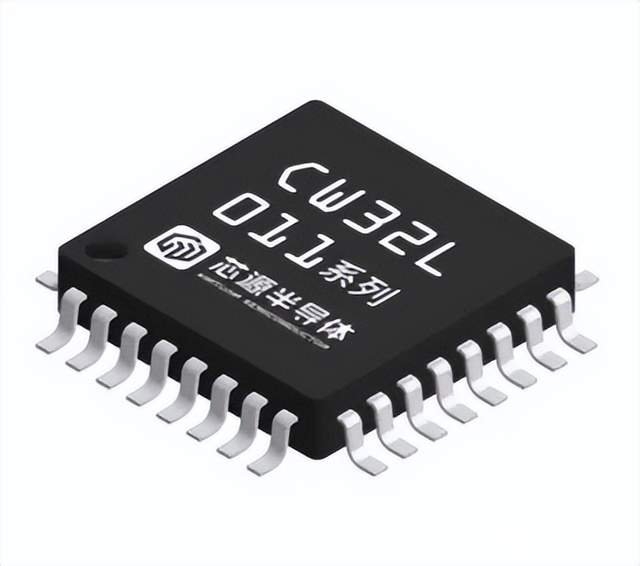

CW32L011 provides two different packaging forms, LQFP32 and QFN32. The functions that can be achieved by products packaged in different forms are different, as shown in the table below:
Peripheral
|
CW32L011K8T6
|
CW32L011K8U6
|
FLASH(Byte)
|
64k
|
SRAM(Byte)
|
6k
|
Timer
|
Advanced Timer
|
1
|
Universal Timer
|
2
|
Low power timer
|
1
|
きほんタイマbasic timer
|
3
|
SPI
|
1
|
12C
|
1
|
UART
|
3
|
|
12 bit ADC
(Number of input channels)
|
1
(14 outside and 2 inside)
|
GPIO
|
26
|
Core frequency
|
96MHZ
|
Working Voltage
|
1.7V-5.5V
|
Operating Temperature
|
-40°C~+85°C
|
Encapsulation
|
LQFP32
|
JFN32
|
CW32L011 Core Highlights
1. High performance ARM Cortex-M0+core
With a clock frequency of up to 96 MHz and abundant storage resources (64 KB Flash+6 KB SRAM), it meets the needs of complex applications.
2. High integration and rich peripherals
Integrate 12 bit high-precision ADC, low-power UART/SPI/I2C interface, timer, PWM and other modules to reduce peripheral device requirements.
3. Supports up to 26 I/O interfaces
All I/O ports support interrupt and wake-up functions with filtering, and all I/O ports support hysteresis and pull-up inputs, push-pull and open drain outputs.
4. Strengthen safety and reliability
Support hardware encryption, write protection, independent watchdog and other functions to ensure data security. Industrial grade working temperature range (-40 ℃~+85 ℃), passed EMC/ESD testing, suitable for harsh environments.
The official website of Wuhan Xinyuan Semiconductor has released technical documents such as the data manual and user manual for CW32L011, as well as supporting StartKit development board materials, low-level peripheral driver software libraries, and application routines SDK materials to facilitate product evaluation and accelerate the development process of new products for users.
The CW32L011 series, built on the 90nm LP eFlash process of Huahong Semiconductor, provides users with superior performance at a more competitive cost. This market validated process solution not only ensures the stability and reliability of the chip, but also significantly reduces the overall system cost, making it an ideal choice for price sensitive applications. We welcome users and friends to apply for sample evaluations!
