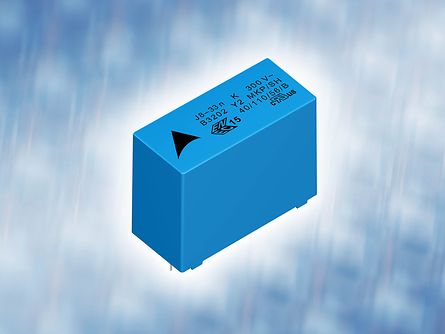

TDK group introduces a new b3202 * H / J series EPCOS mkp-y2 thin film capacitor for interference suppression applications. Compared with the traditional model with the maximum operating temperature of 110 ° C, the maximum operating temperature of b3202 * H / J series reaches 125 ° C. The capacity range of the new series is 1NF to 1 µ F, the maximum rated voltage is 300V AC, and can maintain a stable capacity under severe working conditions. This series of capacitors can pass the high temperature and high humidity (THB) test with temperature of 85 ° C, relative humidity of 85% and working voltage of 240V AC, and meet the standards of IEC 60384-14:2013 / amd1:2016 and aec-q200d.


These UL and en certified capacitors can provide lead spacing of 10 mm (b32021h / J *), 15 mm (b32022h / J *), 22.5 mm (b32023h / J *), 27.5 mm (b32024h / J *) and 37.5 mm (b32026h / J) according to different capacitance values. The shell and packaging materials of all components have the fire rating of UL94V-0.


Typical applications of the new Y2 thin film capacitors include filters and interference suppression applications at high operating temperatures, such as automotive applications.
