TDK introduces pcm120t series shielded SMT power inductors with saturation current up to 80A
2022-03-25

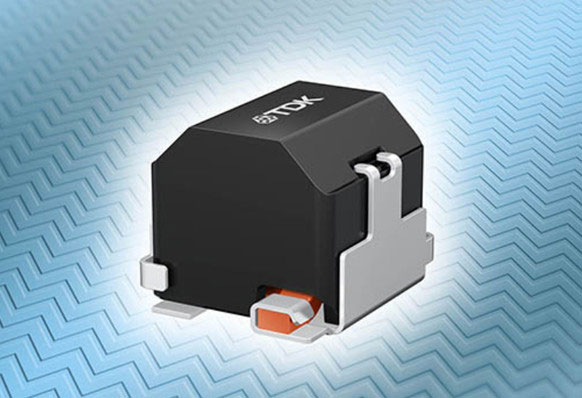

TDK group (Tokyo Stock Exchange code: 6762) launched a new pcm120t series shielded SMT power inductor. PCM inductors are specially optimized for applications with high saturation current and low DC resistance. Pcm120t series can provide between 0.4 μ H to 10 μ Among the 14 inductance values of H, the maximum saturation current can reach 80 A, depending on the inductance value L. The new components have many characteristics and advantages, such as: using metal alloy magnetic core to obtain excellent saturation characteristics; The flat winding structure is adopted to minimize the loss, with 0.72 m Ω (0.4 μ H) To 9 m Ω (10) μ H) Low resistance value (RDC); The shell adopts shielded sealed magnetic core, without external air gap, and has excellent EMC performance around the inductor; The lead frame structure is very suitable for automatic solder joint AOI detection, and realizes.
The new series of components are compact in size, only 12.7 x 15.8 x 11.5 mm (W x L x H), with a wide operating temperature range from - 55 ° C to + 165 ° C, meet the requirements of RoHS directive and obtain aec-q200 standard certification.
Pcm120t series components have a wide range of applications. Typical occasions include primary DC / DC converters in automotive applications, such as ADAS, power supply of servers and base stations, as well as various DC / DC converters. At the same time, it is also very suitable for various interference suppression applications, such as automotive motors.
Characteristics and Applications
Main application
● primary DC / DC converters in automotive applications, such as Adas
● power supply of server and base station
● various DC / DC Converters
● interference suppression of automobile motor
Main features and advantages
● high saturation current: up to 80 a
● wide inductance range: 0.4 μ H to 10 μ H
● low RDC value: minimum 0.72 m Ω
● wide operating temperature range: - 55 ° C to + 165 ° C
● aec-q200 standard certification and RoHS Directive
● suitable for automatic solder joint AOI detection
● excellent EMC performance
● withstand high voltage pulse
