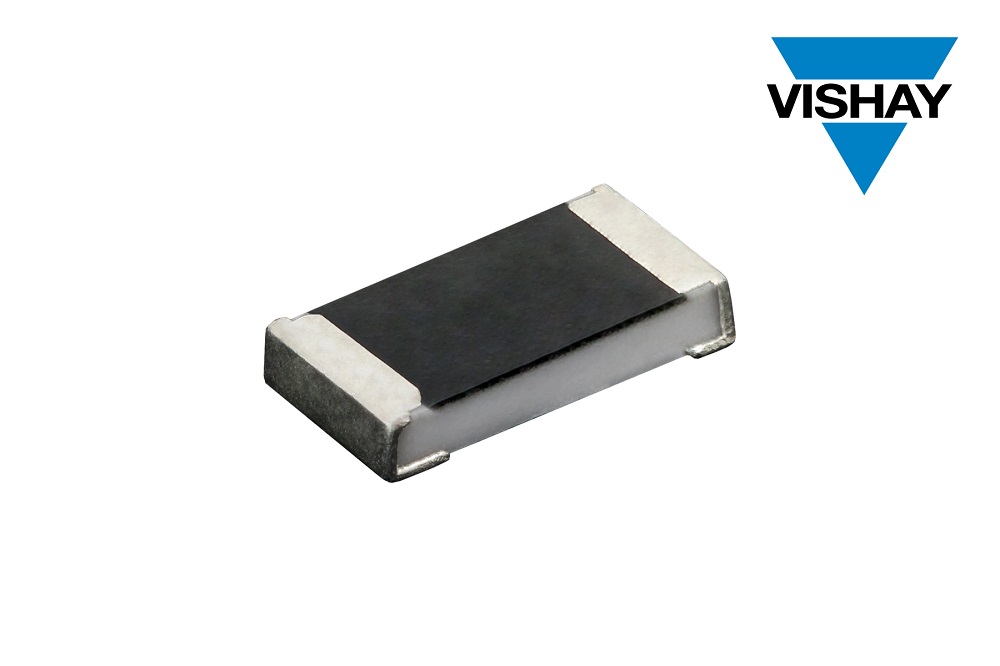

Due to the increased rated power, RCS0805 e3 can now replace four standard 0805 packaged parallel resistors; Two 1206 packaged parallel resistors; or a 1210 encapsulated resistor. Therefore, designers can reduce the number of components and processing costs while saving space on circuit boards for automotive, industrial, communication, and medical applications. In addition, the resistance pulse load performance and ESD surge characteristics are superior to standard chip resistors, suitable for various applications under high-energy and repetitive surge pulses.

         RCS0805 e3 is certified by AEC-Q200, with a resistance range of 1 Ω to 10 M Ω, a jumper resistance of 0 Ω, tolerances of 0.5%, ± 1%, and ± 5%, and a TCR of ± 100 ppm/K and ± 200 ppm/K. The working voltage of the resistor is 150 V, and the working temperature is -55 ° C to+155 ° C. The device complies with RoHS standard and is halogen-free. It is suitable for wave soldering, reflow soldering soldering or gas phase soldering in accordance with IEC 61760-1 on the automatic placement machine.

        The enhanced version of RCS0805 e3 resistor is now available with samples and a supply cycle of 12 weeks.
